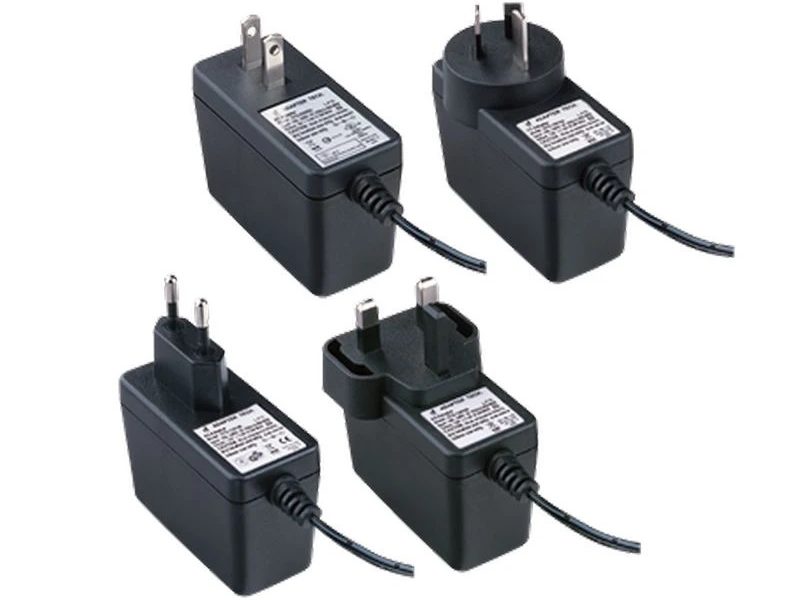

I.T.E. AC/DC Power Adapter - 12W Series

Wall Mount Type
ATS012T-WXXX
XXX = O/P Voltage

Features:
1. IEC/EN/UL 62368-1 3rd Edition
2. 100-240VAC Universal Input
3. Regulated Output with Low Ripple Noise
4. Safety Agency Requirements and EMI/EMS Certified
5. Modified and Custom Design Available
6. 1 Year Warranty

Specifications Details
Input:
1. Voltage 100-240 VAC
2. Line Frequency 50-60Hz
3. Current 0.31A Max.
4. Protection Internal Primary Current Fuse

Output:
1. Load Regulation ±5% (Typical)
2. Ripple & Noise 2% Vp-p Max. for Output Voltage @ Full Load
3. Transient Response 0.5mS for 50% Load Change Typical
4. Hold-up Time 10mS @ Full Load
5. Protection Short Circuit Protection / Over Voltage Protection / Over Current Protection
6. Ferrite Core Yes
7. Safety Approvals
8. For USA CB / UL / cUL / FCC / PSE / BSMI / LPS
9. For Europe CB / CE / GS / LPS
10. For UK CB / UKCA / LPS
