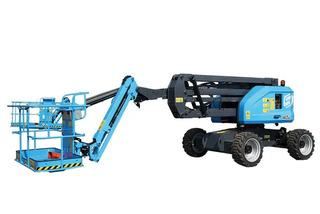

Available Now 2025 Sinoboom AB15J Articulated Boom Lift - Abu Dhabi

The Sinoboom AB15J engine-powered articulating boom lift has a 16.7-meter operating height and is designed for accuracy and efficiency. Because of its negligible tail sweep and low width, it is perfect for confined settings. It is possible to raise or lower the platform without modifying the secondary arm. It guarantees dependable performance with a straightforward linkage design and hydraulic levelling, and it provides accuracy and precision with three joysticks with variable proportional control. For construction, maintenance, and facility management operations, the AB15J boom lift offers dependable, high-reach capabilities. It is designed for both indoor and outdoor use.

Features: Ultra-Compact Wheelbase for Constrained Areas

Quick and Accurate Height Adjustments

Dependable for Constant Lifting Activities

Technical specification

• Reference Number

• AMH209

• Working hours

• 0 hrs

• Operating weight (kg)

• 7,080 Kg

• Engine Output

• 36 kW

• Max Number of Operators

• 2

• Working Height

• 16.7 m

• Platform Capacity

• 250 kg

• Max Horizontal Extension

• 8.5 m

• Power

• Diesel engine

• Drive × Steer

• 4WD × 2WS

• Turntable Rotation

• 355°/Non-Continuous

• Platform Rotation

• 160°

• Gradeability

• 40%

• Features

• Narrow width with zero tail sweep

• Oscillating function

• 7-in display screen

• 4WD× 2WS

• Proportional control with 3 joysticks

• Automotive-grade sleeves for all pipes

• Hydraulic platform leveling

• Weighing system

• Tilt protection system Max tilt rating to 5°

• Emergency stop/lowering system

• Telematics-ready connector

• Non-marking tires foam-filled / solid

• AC power to platform

Request for quote: +971525384269

Price: AED203000
